ELECTROGARD ELI-2200

Two Component Epoxy based Dielectric Insulation Floor Coating

ELECTROGARD ELI-2200

Overview

ELECTROGARD ELI-2200 is a high-performance, solvent-free, two-component dielectric insulation epoxy floor coating. It provides a hard-wearing, chemical-resistant floor finish for use in most industrial and commercial premises where a high-quality floor is required. ELECTROGARD ELI-2200 is well-suited up to 200 °C.

For More Info call us: +91-9323890195 Contact
  • Advantage
  • Specification Clause
  • Technical Data
  • Project Profile
  • Download

Advantage

  • High dielectric strength and excellent insulation resistance
  • Strong bond strength for long-lasting performance
  • Less than 0.1% porosity with dielectric strength exceeding 3000 Volt/25 micron
  • Seamless, hygienic surface finish
  • Superior abrasion resistance
  • Resistant to acids (including 98% sulfuric acid), alkalis, and solvents
  • Easy-to-apply composite pack system
  • Provides an oil- and dust-free surface

Specification Clause

  • Dielectric Strength of more than >3000 Volt/25 micron
  • Breakdown Voltage: 22 KV
  • Thickness: 700-800 micron
  • Bond Strength: >4.0 MPa
  • Shore D Hardness: 80-85
  • Min. Working Temperature: 25°C
  • Coverage, m2/kg/thickness: 1.25-1.10
  • Compressive Strength: >60 N/mm2
  • Flexural Strength: 40 N/mm2

Technical Data

  • Type: Self Smoothing Dielectric Epoxy Floor Coating

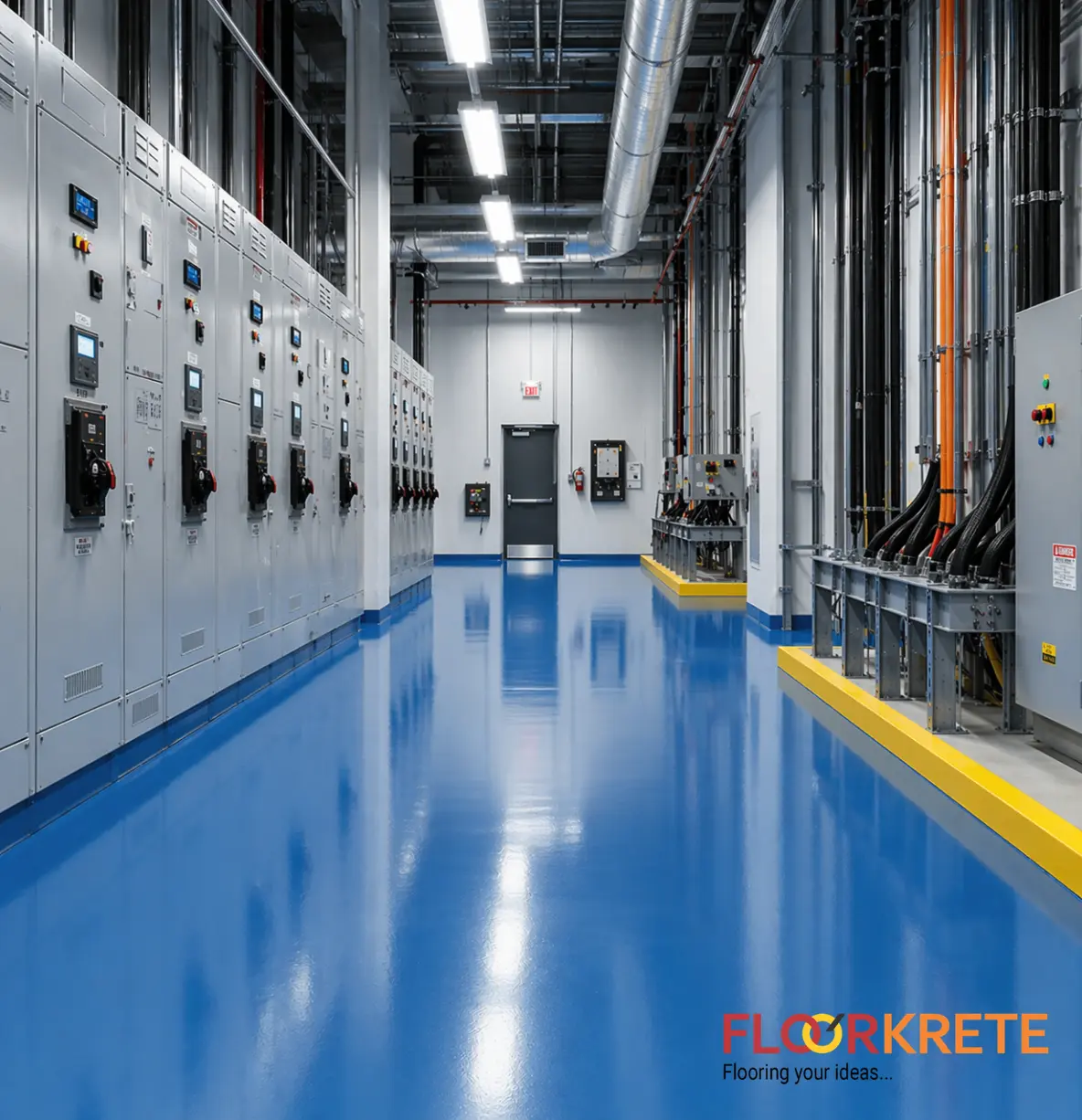

  • Uses: Electrical & electronics facilities, control panel rooms, transformer rooms, LT/HT laboratories, Industrial plants, Metal-treatment plants, production areas, Waste & utility areas
  • Colour Available: Light Blue, Green, Yellow, Red
  • Method of Application: Using woven roller
  • Packing: 20 Kg composite pack

Project Profile

Project profile coming soon!

Download

To access TDS, click here
