Electrogard Dielectric Insulation Coating: Coating for protection against Electrical and Insulation Hazards.

The industrial facilities have very complex electrical systems that run 24/7 under adverse conditions. The control panels, power equipment and conductive surfaces are often deal with moisture, dust, chemicals and mechanical stress. Interaction between these elements and electricity may lead to higher chances of equipment failures, leakage currents and corrosion.

Dielectric insulation coatings play important role in reducing these risks. These coatings have a critical role to play in surface protection compliances in industrial environments where safety and reliability are the most important aspects.

Understanding Dielectric Insulation Coatings

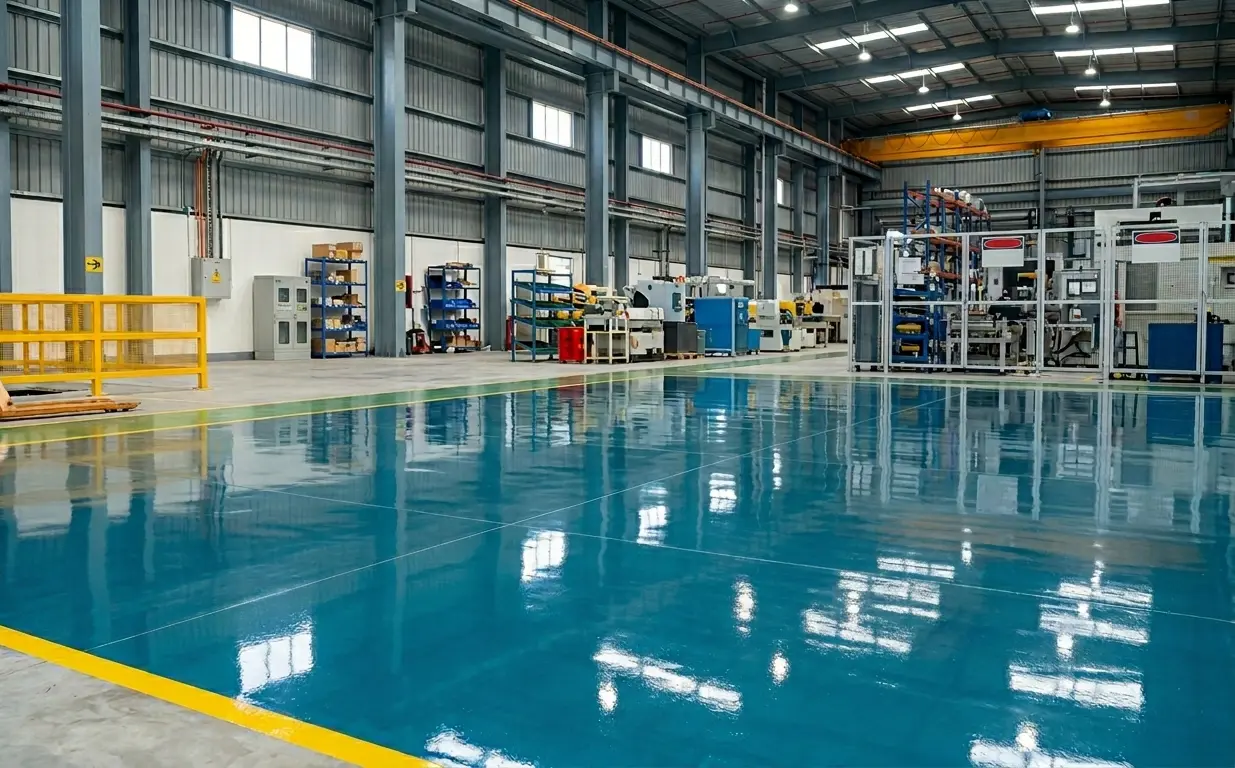

An insulation floor coating is engineered as a dielectric resistant to the flow of electrical current and at the same time, offers mechanical stability. High-performance coatings are a combination of tough insulation characteristics, abrasion resistance, chemical resistance, and durable adhesion.

An advanced single-component system can provide dielectric strengths of over 50 KV/mm, and resist peeling in ASTM tests. Also, porous coatings of less than 0.1 percent and dielectric strength greater than 3000 volts per 25 microns are effective in reducing possible leakage routes.

What is a 1K Dielectric Insulation Coating?

A 1K (single-component) dielectric coating is a pre-formulated insulating coating supplied as a single material, requiring no mixing before application. Its final result is a tough, hard wearing surface, which is suitable for industrial and commercial setting, providing UV protection and long term performance.

The Technical Highlights of 1K Coatings:

• Breakdown voltage: 5 KV and 11 KV, according to applied thickness.
• Fire performance UL94 V-0.
• Humidity and temperature Resistant to exposure to humidity up to 1000 hours, and can resist temperatures at 90°C or higher.
• The shortest touch-dry time of 15-25 minutes, which can complete a project quicker.
________________________________________

What is a 2K Dielectric Coating?

A 2K (two-part) dielectric coating is a blend of resin and hardener to create a chemically cured high-performance film. The coatings are used when more mechanical strength and higher voltage resistance is needed.

For instance, high-performance epoxy insulation floors can provide:

• Disintegration voltage of over 60 KV.
• Shore D of 85-88, which indicates good surface durability.
• Compressive strength of above 86 N/mm².
Certain epoxy formulations are engineered for extreme conditions, operating up to 200°C, and resisting acids, alkalis, solvents, oil, and dust.

Advantages of Dielectric Coatings

1. Electrical Safety Enhancement ⚡

Dielectric coatings form a non-conductive barrier that prevents unintended electrical current flow. This reduces the risk of shocks, short circuits, and equipment malfunctions in industrial environments.

2. Improved Equipment Reliability 🏭

By insulating conductive surfaces, these coatings minimize electrical leakage or discharge. This helps maintain stable operation of electrical systems and protects sensitive equipment.

3. Corrosion Resistance 🛡️

Electrical currents combined with moisture accelerate corrosion on metal surfaces. Dielectric coatings limit such interactions, extending the service life of equipment and structures.

4. Reduced Maintenance and Downtime 🔧

Protective insulation coatings lower the risk of electrical faults and corrosion-related damage, reducing repair frequency and operational interruptions.

5. Versatile Application ⚙️

These coatings can be applied to metal, concrete, and electrical enclosures, making them suitable for a wide range of industrial and infrastructure applications.
________________________________________

Conclusion

In modern industrial environments, electrical safety and equipment reliability depend on effective surface protection. Floorkrete dielectric insulation coatings create a non-conductive barrier that safeguards conductive surfaces from electrical leakage, environmental exposure, and corrosion. Properly applied, these coatings enhance operational safety, extend equipment life, and ensure reliable electrical system performance across diverse industrial settings.
________________________________________

Floorkrete ElectroGard® Dielectric Coating Range

1. ELECTROGARD SLI-5 –

Single-component surface coating providing a durable, hard-wearing finish for industrial and commercial areas. UV-resistant, suitable for exterior use.

2. ELECTROGARD SLI-11 –

High-performance, single-component dielectric insulation coating forming a seamless, durable finish with excellent adhesion.

3. ELECTROGARD ELI-500 –

Durable epoxy floor coating offering excellent electrical insulation for concrete floors and metal plates in electrical, electronics, and communication industries.

4. ELECTROGARD ELI-1100 –

Solvent-free, two-component coating providing reliable dielectric strength for industrial and commercial premises.

5. ELECTROGARD ELI-2200 –

Hard-wearing floor finish with excellent abrasion resistance, providing oil- and dust-free surfaces.

6. ELECTROGARD ELI-3300 –

Chemical-resistant, hard-wearing floor finish suitable for industrial premises and temperatures up to 200°C.

7. ELECTROGARD ELI-5300 –

Solvent-free, two-component epoxy coating providing reliable electrical insulation and protection for temperatures up to 200°C.

8. ELECTROGARD EXPOSIL –

Durable floor or wall coating designed for high-voltage resistance in industrial and commercial applications along with UV protection.

9. ELECTROGARD ELI-8000 –

High-performance, solvent-free, two-component epoxy coating with <0.1% porosity and excellent abrasion resistance for long-term protection.

10. ELECTROSCREED –

Solvent-free, two-component epoxy floor screed providing a hard-wearing finish with high dielectric voltage breakdown resistance.
