ELECTROSCREED

Two Component Dielectric Insulation High Voltage Resistant Self Smoothing Epoxy Floor Screed

ELECTROGARD ELECTROSCREED
Detail

Overview

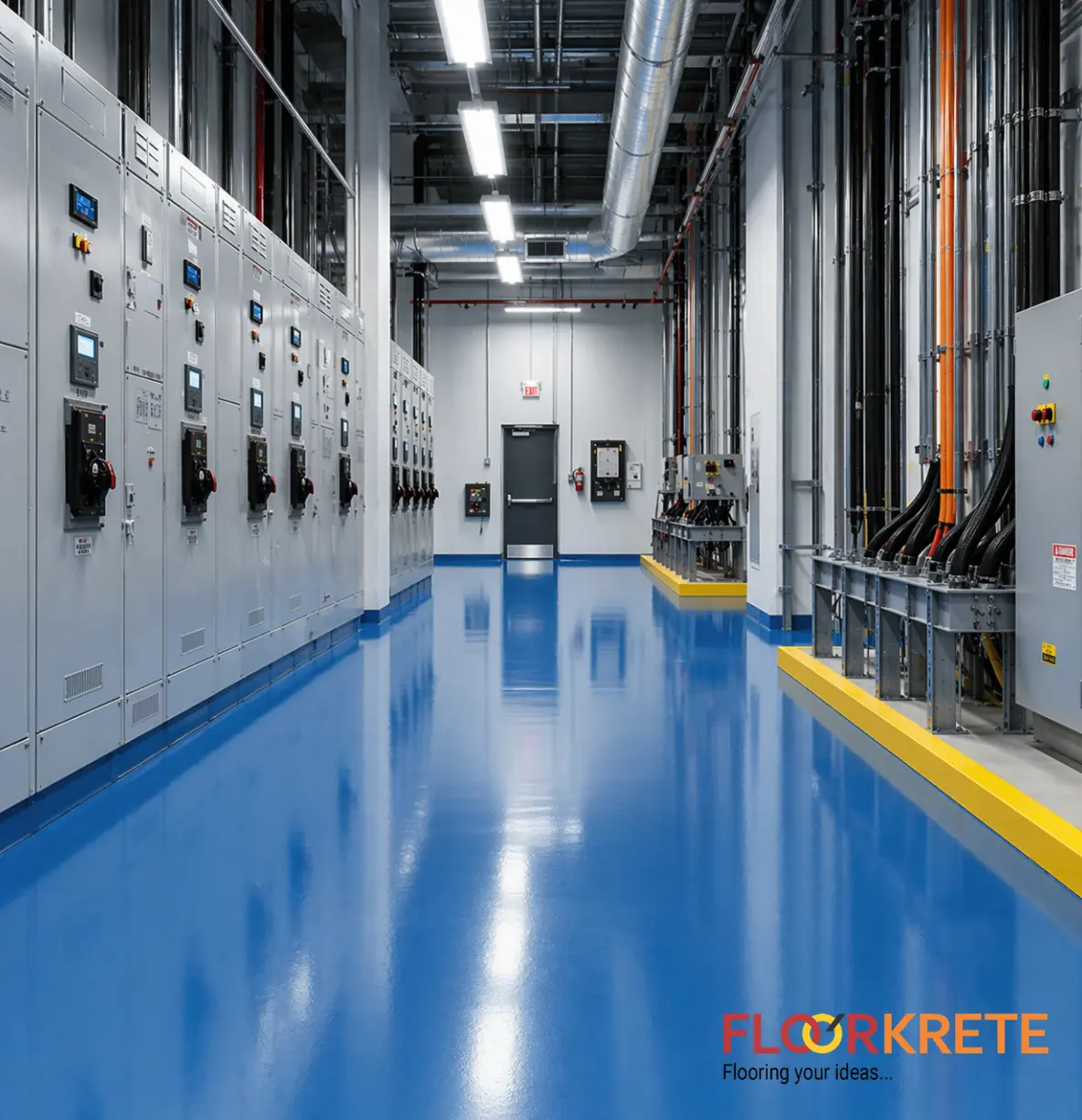

Electroscreed is a two-component, epoxy-based, self-leveling dielectric floor coating. Applied at 1 mm thickness and available in a wide range of colors, it is resistant to acids, alkalis, and solvents. Once applied, the product protects workers from electrical hazards in control panel rooms and other areas. Electroscreed is a high-performance, solvent-free epoxy floor screed that provides a hard-wearing finish where a high level of dielectric voltage breakdown is required.

For More Info call us :-91-9323890195
Contact
Select Parameters
  • Advantage
  • Specification Clause
  • Technical Data
  • Project Profile
  • Download

Advantage

    • High dielectric strength and insulation resistant,
    • High bond  strength with concrete floors,
    • Less than 0.1% porosity
    • Seamless and hygienic surface,
    • Abrasion resistance,
    • Easy to apply being composite pack.

Specification Clause

    • Breakdown voltage: >22.4 KV
    • Dielectric Strength: >20 KV/mm
    • Touch Dry Time: 2-5 Hours
    • Shore D Hardness: 70-75
    • Bond Strength: >4.0 MPa (Concrete Breaks)
    • Min. Working Temperature: 25°C
    • Coverage, Kg/m2/mm: 1.3 to 1.4
    • Compressive Strengh: >45 N/mm2
    • Flexural Strength: >20 N/mm2

Technical Data

    • Type: Self Smoothing Dielectric Epoxy Floor Coating
    • Uses: Electrical & electronics facilities, control panel rooms, transformer rooms, LT/HT laboratories, Industrial plants, Metal-treatment plants, production areas, Waste & utility areas
    • Colour Available: Light Grey, Light Blue, Green, Signal Yellow, Dark Red
    • Method of Application: Through notch trowel
    • Packing: 20.8 Kg composite pack

Project Profile

    Project profile coming soon!
